Z Post

Z Post Z Post Z Post
  •  Easy to install
  • Hot-dip galvanizing
  • Strong impact resistance
    • Inquiry
    • Product Details

    SPECIFICATIONS

    Z-post Set

    Z Post1600*91*51*4.3mm
    Z Post Space75*60*50**9.5mm
    Hexagon Socket ScrewM16*40mm
    Spacer76*44*3mm

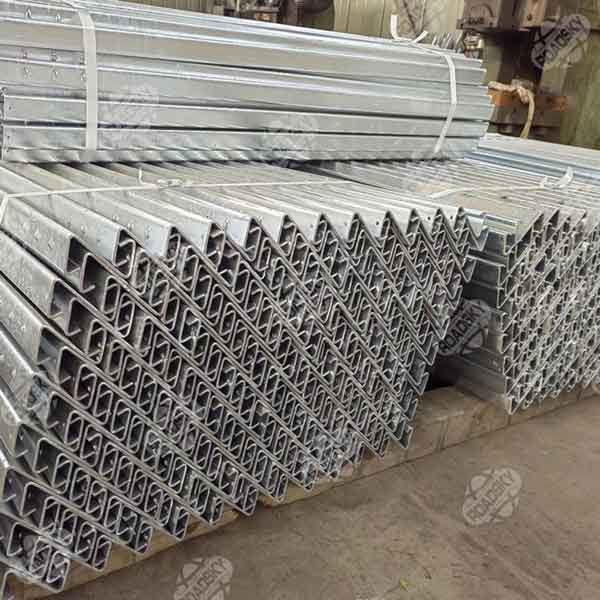

    Z-post

    Size1600*91*51*4.3mm
    Weight11.5±0.5 KG
    MaterialsQ235
    Zinc coating300g/㎡

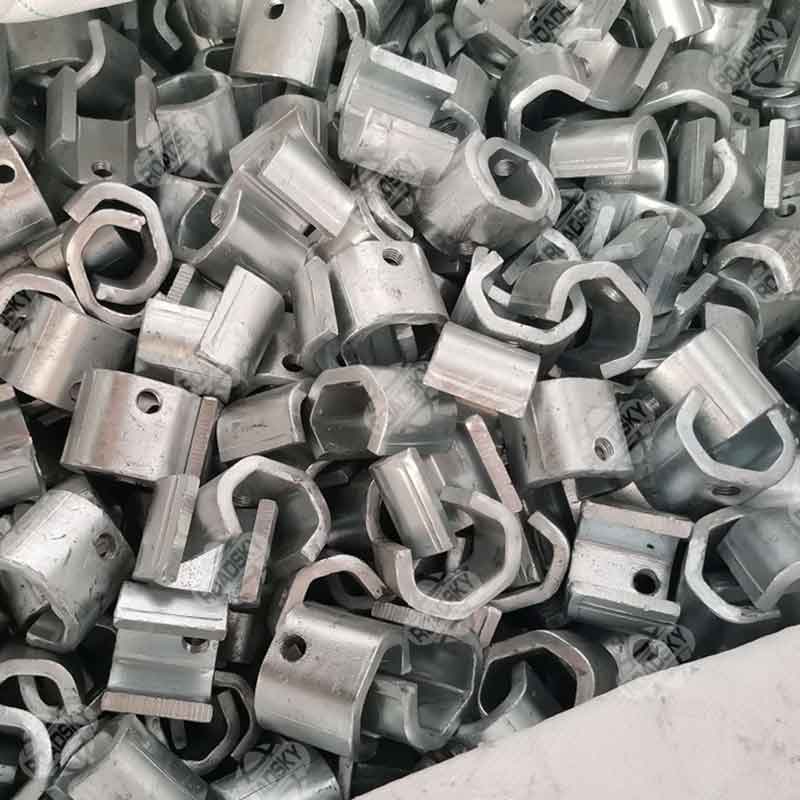

    Z-post space

    Size75*60*50*9.5mm
    Weight0.7±0.1 KG
    MaterialsQ235
    Zinc coating300g/㎡

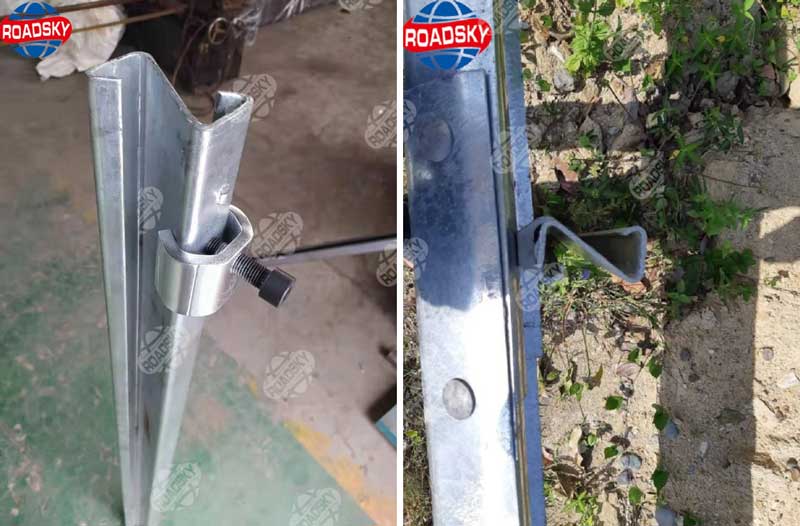

    The Highway Guardrail Z Post is a durable solution for mounting guardrails along highways. The Z-channel post features enhanced anti-corrosive properties after undergoing a galvanized surface treatment. Each Z post is punched at one end to facilitate easy installation.
