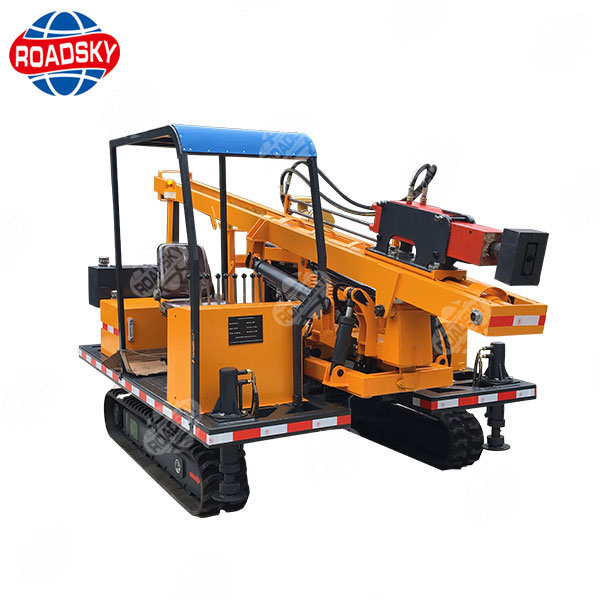

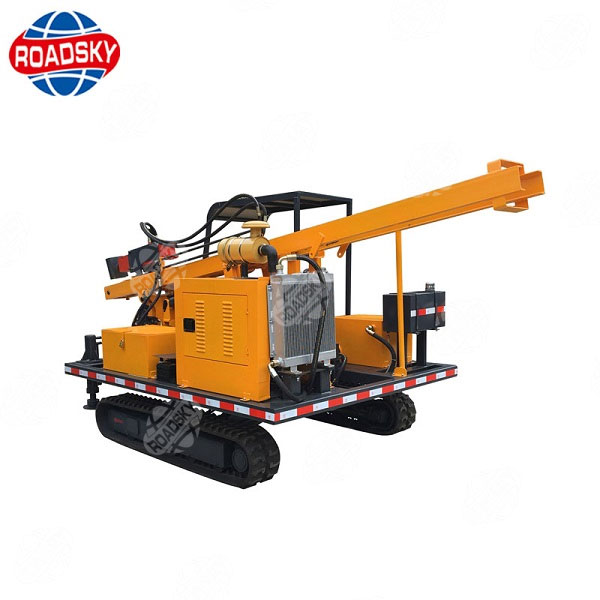

YCR Solar Pile Driver
- Product Details
The YCR Series Hydraulic Solar Pile Driver is designed specifically for solar power farm projects. It offers piling depths of up to 4-6 meters, catering to the requirements of photovoltaic installations. Additionally, its 360-degree rotating working platform enables efficient and fast operation across the site.
Specification:
| Model | YCR-230 |
| Pilling Height | 4 Meters to 6 Meters |
| Impact frequene（bmp） | 600-900 |
| Impact（j） | 1250 |
| Skid Pitch（°） | 120 |
| Boom Swing angle （°） | From Left to right total 40 |
| Swing Angle of Skid（°） | From Left to right total 30 |
| Driving Speed (km/h) | 0-5 |
| Host Power（KW） | 38 |
| Oil Tank Capacity (L) | 100 |
| Climb Ability（°） | 35 |
| Dimensio（L*W*H )(mm） | 4830*2000*2300 |
| Weight（Kg） | 2600 |
| Diesel Engine | 4-cylinder Diesel Engine , 34KW |
| Hydraulic Hammer Weight (kgs) | 230kg |
| Hammer Rating (J) | 600-800 |
| Oil Flow (L/min) | 0-170 |
| Rated Working Pressure(Mpa) | 16Mpa, Max：20Mpa |
| Additional Function | Rock Drilling |
Main Parts:
Solar Pile Driver Features
- Efficient Foundation Installation
- Versatility
- Accuracy and Consistency
- Reduced Maintenance
- Cost Efficiency
Solar pile drivers are essential tools in the construction of solar power plants, enabling efficient, accurate, and reliable installation of the foundations that support solar panels.
FAQs
What Is the Brand of Solar Pile Driver Engine?
Our engines can be domestic or imported and can also be customized according to customer requirements.
Can the guide rail be front, back, left, and right?
The guide rail can be front and rear, but if you want left and right, you need to customize
What Is the Package of Solar Pile Driver Like?
It is suitable for export packaging and the net weight of whole machine ranges from 2.2 ton to 4.6 ton according to different sizes.
Is the Solar Pile Driver Equipped with the Function of GPS?
By default, the machine is not equipped with function of GPS, but we can provide customization service.
Hammer Rating range for solar pile driver
600J-1200J

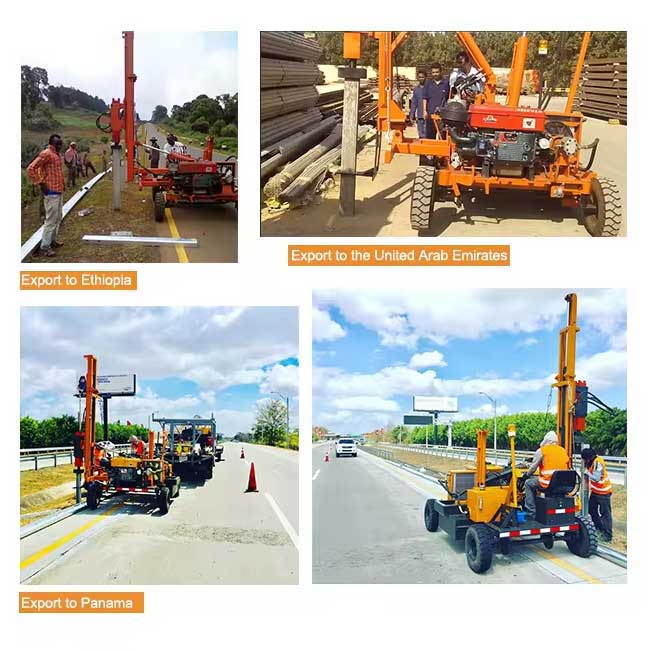

Customer Case:
Why Choose Us?
- Professional engineers team and Rich manufacturing experience
- Prompt reply and Timely delivery
- High quality & Competitive price
Sincerely hope to establish good business relations with you, our distinguished client!
