U Post

Key Features:

Can withstand extreme environmental conditions.

Strong and long-lasting design for highway guardrail support.

Galvanized surface treatment for improved anti-corrosive properties.

Inquiry

Product Details

Highway guardrail U posts are robust and straightforward posts designed for mounting highway guardrails. These U-channel posts are treated with a galvanized coating to improve their resistance to corrosion, ensuring long-term durability and performance in harsh weather conditions. The posts are pre-punched at one end, allowing for quick and easy installation.

Specifications:

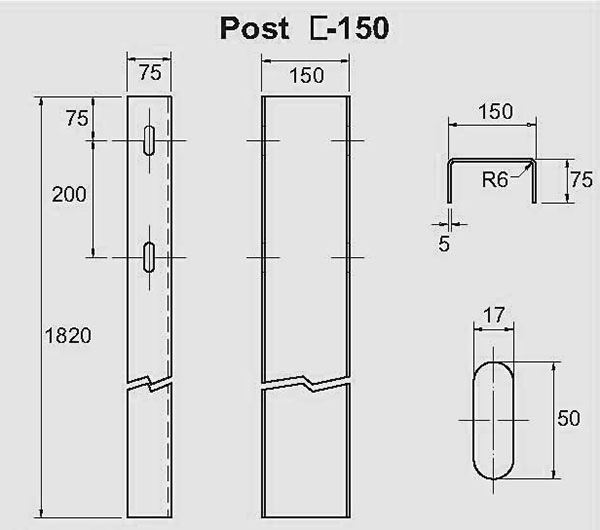

Normal Size	1500150754~6mm, 1800178764~6 mm, 2000150100*4~6mm and available in different sizes.
Applicable standards	JT/T 281-1995(China), AASHTO M180-79(USA), TL-SP 92(Germany) or any other International Standards.
Base steel:	Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).
The thickness of the steel	4~6mm or customized
Surface treatment	Hot dip galvanized
The thickness of galvanized (double sides)	275g/m2 (40µ) ,550g/m2 (80µ)
Features	Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc
