Thrie Beam Guardrail

Key Features:

1. Hot dip galvanized.

2. Long service life.

3. Thickness and length can be customized.

4. Zinc coated thickness can be customized.

5. Anti-collision effect is better than W Beam

6. Steel Grade Q235B (ASTM A283M) or Q345 (ASTM A529M) is available.

Inquiry

Product Details

Galvanized steel guardrail beams are commonly used as crash barriers to prevent vehicles from leaving the road in hazardous areas. The Thrie Beam (three-beam) guardrail offers superior anti-collision performance compared to W-Beams, making it especially effective on high-risk roads, such as bridges.

Material: Galvanized steel for corrosion resistance and durability.
Function: Prevents vehicles from running off the road in dangerous areas.
Enhanced Protection: Thrie Beam design provides better impact resistance than W-Beams.
Application: Widely used on high-risk roads, including bridges.
Durability: Built to withstand collisions and harsh environmental conditions.

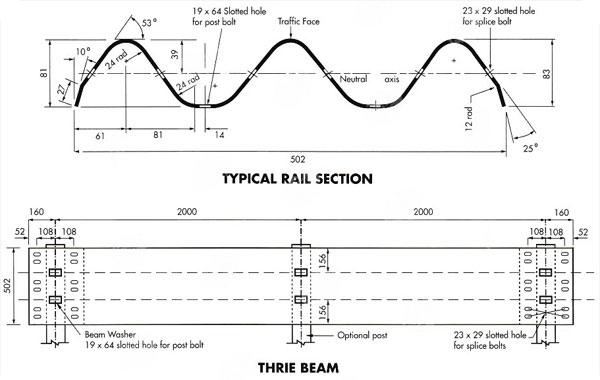

Specifications:

Standard Size	4130506853.5/4.0mm, 4320506853.5/4mm or customized
Material	Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).
Thickness	3.5/4.0 mm or customized
Surface Treatment	Hot dip galvanized or galvanised steel coil
Zinc coating	100g/m2 (15µ),275g/m2 (40µ), 550g/m2 (80µ)
Standards	JT/T 281-1995(China), AASHTO M180-79 etc.
Application	bridge and other dangerous area

Highway Guardrail Manufacturer

Your Reliable Highway Guardrail Supplier in the Philippines

As a leading supplier of guardrail beams, posts, end terminals, and accessories, we design protective guardrail systems for highways, secondary roads, parking lots, factories, and warehouses. Our strong R&D team and stringent production controls ensure that our products meet international standards for highways and workplace safety.
