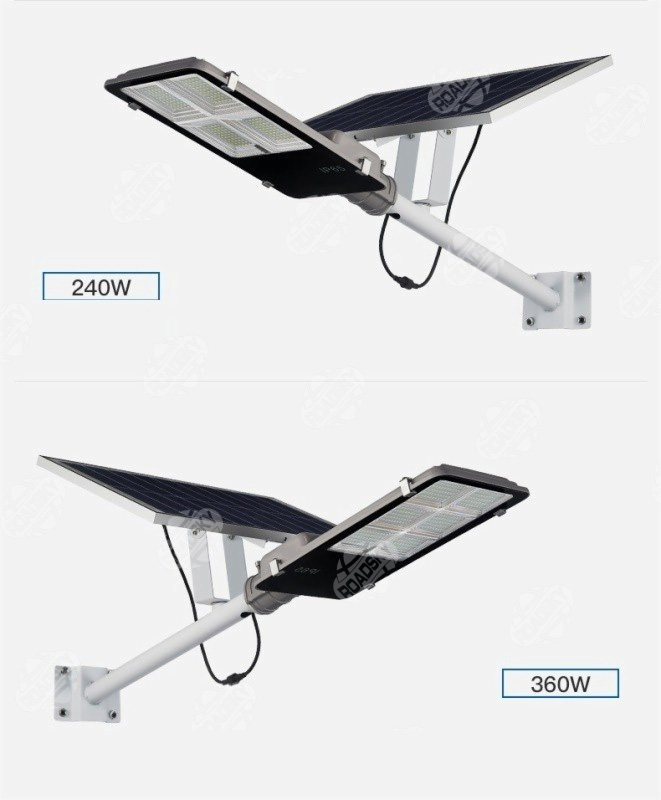

Split Type Solar Street Light
- Product Details
A Split Type Solar Street Light is an advanced, energy-efficient lighting solution that consists of two separate components: a solar panel and a lighting unit, which are connected via a cable. This design allows greater flexibility in installation, as the solar panel can be positioned in the optimal location for sunlight exposure, while the light unit is placed on the pole or desired location.
Specifications
| Model | Rated power | LED chip brand | lumens of light | Solar panel | Battery |
| LD-T15 | 12V/15W | USA Bridgelux | 130-150 Lm | 12V/50W | 12V/30AH |
| LD-T21 | 12V/21W | 12V/70W | 12V/48AH | ||
| LD-T30 | 12V/30W | 12V/90W | 12V/64AH | ||
| LD-T40 | 12V/40W | 12V/100W | 12V/100AH | ||
| LD-T50 | 12V/50W | 12V/120W | 12V/120AH | ||
| LD-T60 | 12V/60W | 12V/180W | 12V/120AH | ||
| LD-T70 | 12V/70W | 12V/180W | 12V/120AH | ||
| LD-T80 | 12V/80W | 12V/200W | 12V/140AH | ||
| LD-T90 | 12V/90W | 12V/240W | 12V/160AH | ||
| LD-T100 | 12V100W | 12V/300W | 12V/200AH | ||
| LD-T120 | 12V/120W | 12V/360W | 12V/240AH | ||
| LD-T180 | 12V/180W | 12V/600W | 12V/480AH | ||
| LD-T200 | 12V/200W | 12V/600W | 12V/480AH |
| Color temperature | 6000K |
| Lifespan | ≥ 70000 hours |
| Beam angle | 120° |
| Power factor | ≥95% |
| Protection level | IP66 |
| Installation diameter | 60mm |
| Charging time | 4hours (intense sunlight) |
| Discharge time | Full power > 5 hours |
| Discharge time | Power saving mode: >10 hours |
| Operating temperature | from -30℃ to +70℃ |
| Two lamps’ installation distance | 20m-50m |
| LED Lamps | LED lamps with aluminium die casting and serrated heat sink |
| Remarks：including ,lamp head solar panel and battery Excludeding outriggers electrical wires etc. accessories | |
| LED Lamps：LED lamps with aluminium die casting and serrated heat sink;Easy to install and uninstall;Built-in Bridgelux chips and MOSO battery | |
| Color temperature | 6000K |
| Lamp efficiency | 130-150LM/W |
| Power factor | ≥95% |
| Beam angle | 120° |
| Light degradation rate | ≤3% |
| Average lifespan | ≥70000 hours |
| Warranty | 3 year |
Key Features:
- Flexible Installation: The solar panel and light unit are separate, making it easier to install the panel in an area with maximum sunlight, while the light unit can be placed where illumination is needed.
- Energy-Efficient: Powered by solar energy, reducing electricity costs and offering an eco-friendly alternative to traditional street lighting.
- High-Quality LED: Equipped with high-intensity LED lights, providing bright and consistent illumination with low power consumption.
- Long Battery Life: The system typically includes a high-capacity battery that stores solar energy during the day, ensuring reliable lighting through the night.
- Weather-Resistant: Built to withstand harsh weather conditions, including rain, snow, and extreme temperatures, with durable materials such as aluminum and tempered glass.
- Easy Maintenance: Low maintenance design with no wiring to the grid, reducing the risk of electrical issues.
- Automatic Operation: Many models feature automatic dusk-to-dawn functionality, turning the lights on at night and off during the day.
- Environmentally Friendly: Solar-powered, reducing carbon emissions and reliance on non-renewable energy sources.
Applications:
- Street and Road Lighting: Ideal for urban streets, highways, and rural areas where conventional grid power is unavailable or impractical.
- Parks and Public Spaces: Provides safe, sustainable lighting for public parks, walkways, and recreational areas.
- Parking Lots and Security Lighting: Suitable for parking areas, security lighting, and outdoor facilities.
- Commercial and Residential Areas: A cost-effective and sustainable lighting solution for residential and commercial properties.
