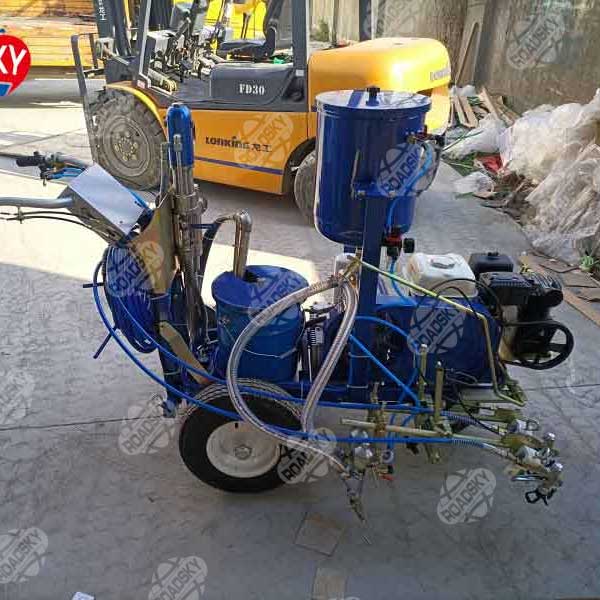

RS-5E Cold Paint Line Striper

Key Features:

Stable Hydraulic Pump: Ensures consistent, high-quality line marking.
Adjustable Spray Gun: Provides flexible marking options.
Durable Design: Long service life with simple, reliable components.
Versatile Use: Ideal for parking lots, streets, airports, and more.

Inquiry

Product Details

The RS-5E Series Cold Paint Line Striper is designed for high-efficiency road marking, offering stable performance and durability. Its hydraulic pump, adjustable spray gun, and paint filter ensure precise and consistent markings, while the simple structure and reliable components guarantee a long service life.

Specifications:

Model	RS-5E
Application	parking lots, streets, bike paths,air ports etc
Dimension	190012001250mm
Weight	190kg
Engine	5.5HP gasoline engine
Pump and Control Method	auto-shuttle pluger pump
Working Pressure	10-15Mpa
Spraying Gun	2pcs
Sparying Width	50mm to 500mm
Sparying Thickness	0.2mm to 0.6mm
Marking Speed	13km/h
Marking Method	high pressure airless spraying
Spraying Flow Rate	11L/min

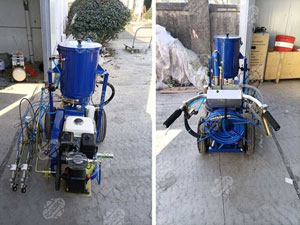

Air jet Type

Parts:

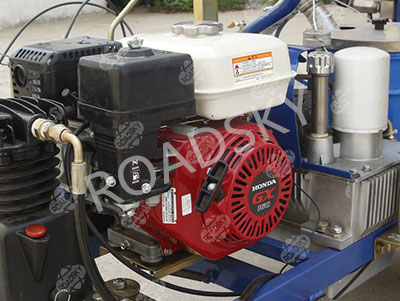

Engine: Powerful Honda engine

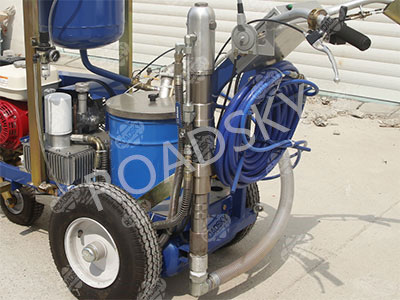

Hydraulic Pump: Generate power for the working of RS-5E

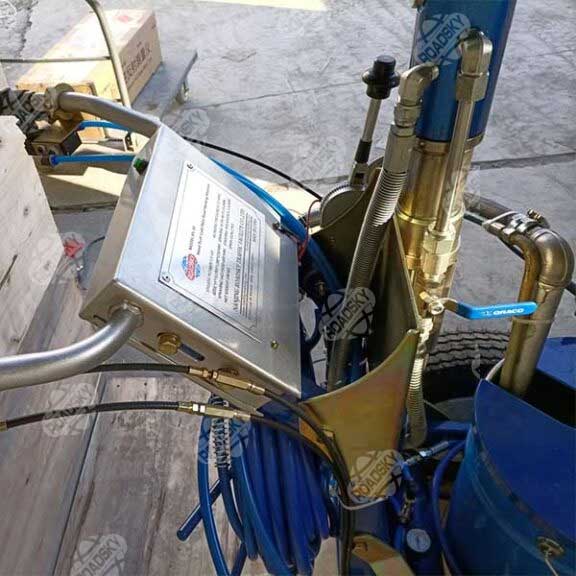

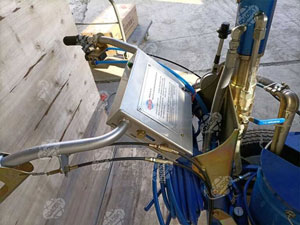

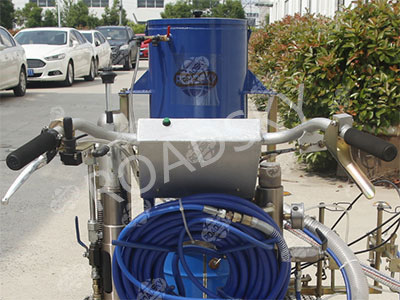

Operating Triggers: Left trigger controls moving direction. Right trigger controls working of spray gun.

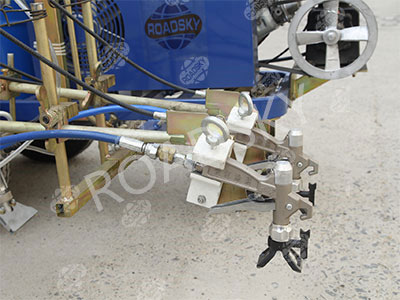

Spray Gun: The height and distance of spray guns can be adjusted to mark lines in different width and spacing.

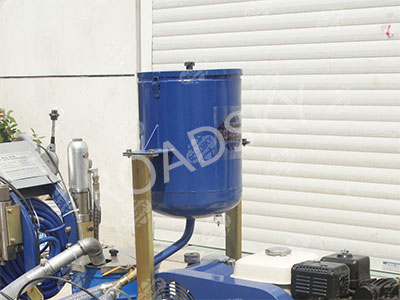

Glass Beads Tank: Storage glass beads

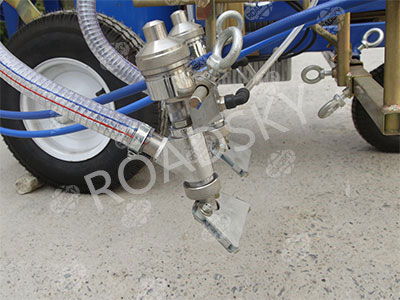

Dispenser: Spray the glass beads.
