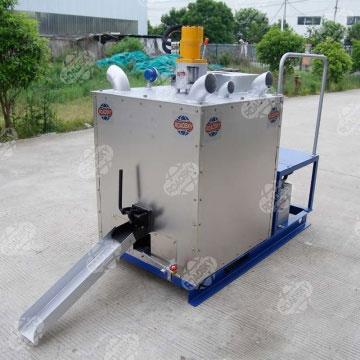

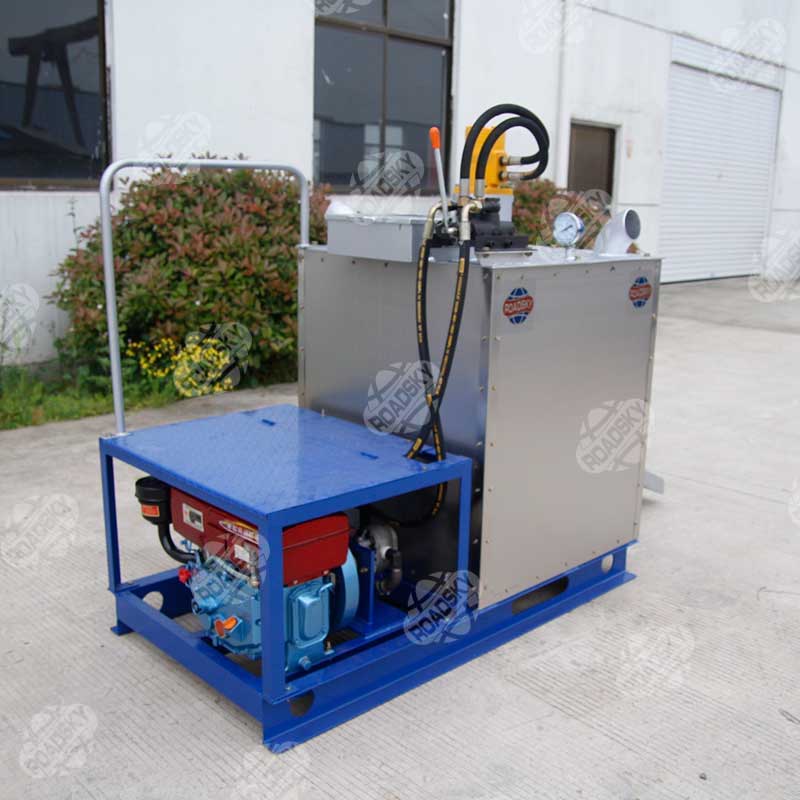

RS-4B-600 Single Tank Thermoplastic Preheater
- Product Details
- PARTS
- PACKAGE
Single tank hydraulic thermoplastic paint preheater is designed for flexible use for road marking projects. Compared to the double tank preheater, less capacity of the hydraulic oil tank, less power diesel engine, and a smaller hydraulic system is suitable for small-scale road marking projects.
Specifications:
| Model | RS-4B-600 |
| Tank Quantity | Single Tank |
| Size (L×W×H) | 1790*910*1580 mm |
| Net Weight | 550 kg |
| Melting Temperature | 180℃ to 220℃ |
| Diesel Engine | 8P Electric-started water cooling engine |
| Hydraulic Oil Tank Capacity | 40L |
| Thermal Insulation Layer | 4mm thickness steel plate, 5cm thickness insulation cotton and 1mm thickness stainless steel |
| Paint Tank Bottom Thickness | 6mm |
| Heating System | Liquefied petroleum gas (natural gas), adopt energy-efficient burner |
| Rotating Speed of Stirring Device | 20-100r/min. |
| Hydraulic System Pressure | 5 Mpa |
| Working Pressure | 4-5 Mpa |

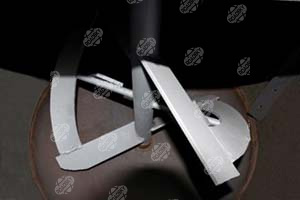

Stirring device: it stirs the paint to ensure that paint in the preheater is evenly heated.
Burner: Heating the thermoplastic paint with fuel.

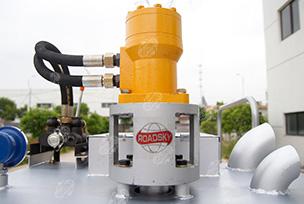

Hydraulic motor: it controls the pressure of hydraulic.

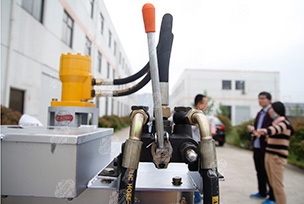

Multitandem valve: it controls the rotation direction of stirrer.

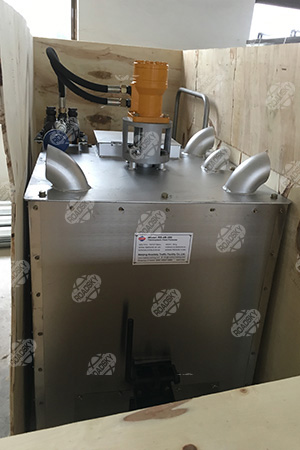

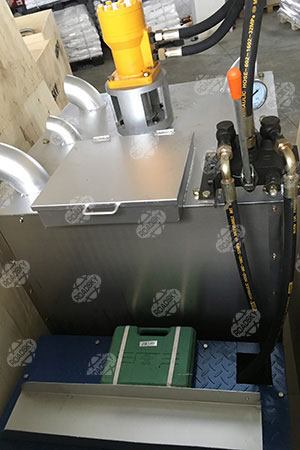

Packing:
PARTS
Stirring device: Stirring the paint to ensure that the paint in the preheater is evenly heated.
Burner: Heating the thermoplastic paint with fuel.
Hydraulic motor: it controls the pressure of the hydraulic.
Multi-tandem valve: it controls the rotation direction of the stirrer.
PACKAGE
