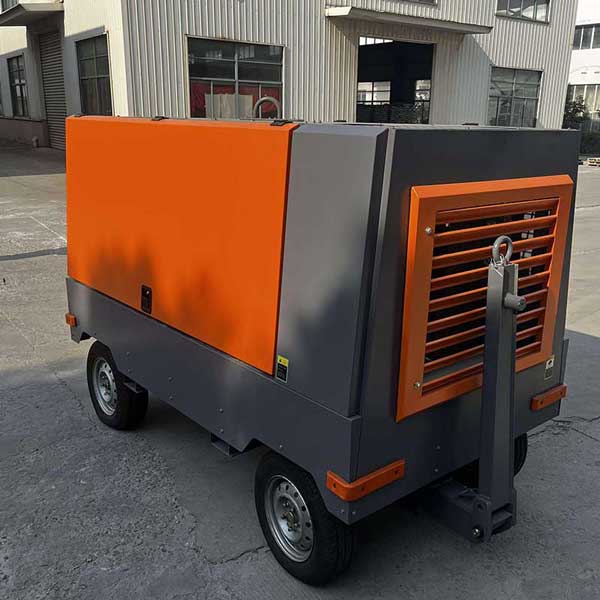

RA-13A Air Compressor

Features:

- Mobile Design for easy transport.

- Diesel Engine for reliable power.

- Efficient Layout with simple operation, low maintenance, and a sleek, compact appearance.

- Night Vision Display on the dashboard for easy nighttime use.

- High Altitude Capability: Operates up to 2,000 meters and in temperatures ranging from -20℃ to +45℃ at full load.

Inquiry

Product Details

ROADSKY’s diesel-powered portable screw compressors are known for their exceptional performance and high reliability, with minimal maintenance requirements. This air-cooled, dual-stage, oil-injected screw compressor is powered by a diesel engine and features twin-rotor technology for efficient operation. Its portable design makes it easy to move and adapt to different job sites.

Specifications:

Model:	RA-13A
Exhaust pressure:	1.3Mpa
Exhaust volume:	15 m³/min
Rated working pressure:	15 bar（217 psi）
Maximum towing speed:	20km/h
Brand of diesel engine:	Yuchai
Engine Power:	141 kW(187 hp)
Speed:	2300r/min
Displacement:	4.5 L
Overall dimension:	325016102250mm
Weight:	2520kg

Overall Layout

The unit consists of compressor air end, diesel engine, intake system, compressor exhaust system, diesel exhaust muffler system, cooling and lubrication systems, compressor air regulation and control systems, fuel systems, automatic protection system, control panel, electrical system, tramming system and other components. It comes with excellent acoustic insulation materials, reducing noise to a minimum, so that the working environment is not too noisy.

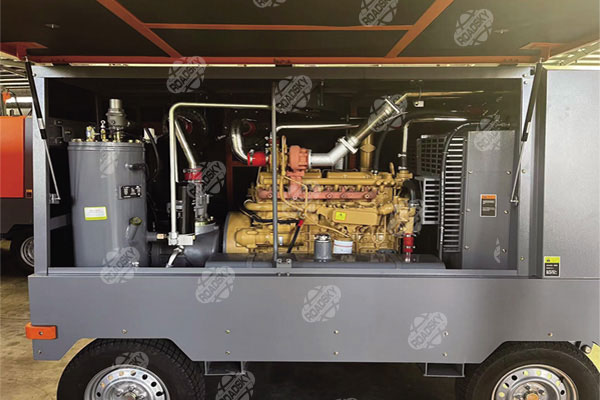

Air Compressor Control panel — Air Compressor Engine

Air Intake System

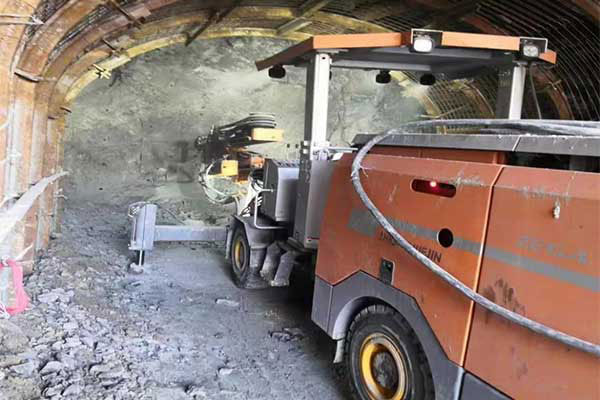

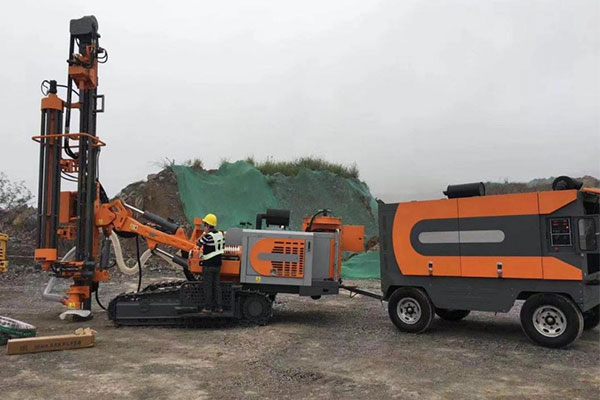

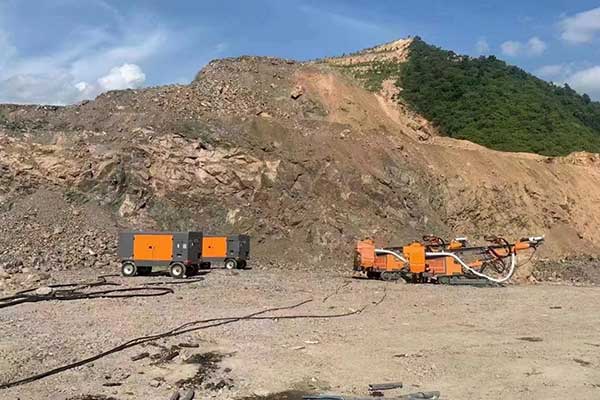

Use Cases

Applications: Widely used in industries such as hydropower, railway, ship repair, mining, highway construction, oil and gas, water well drilling, and municipal projects.
