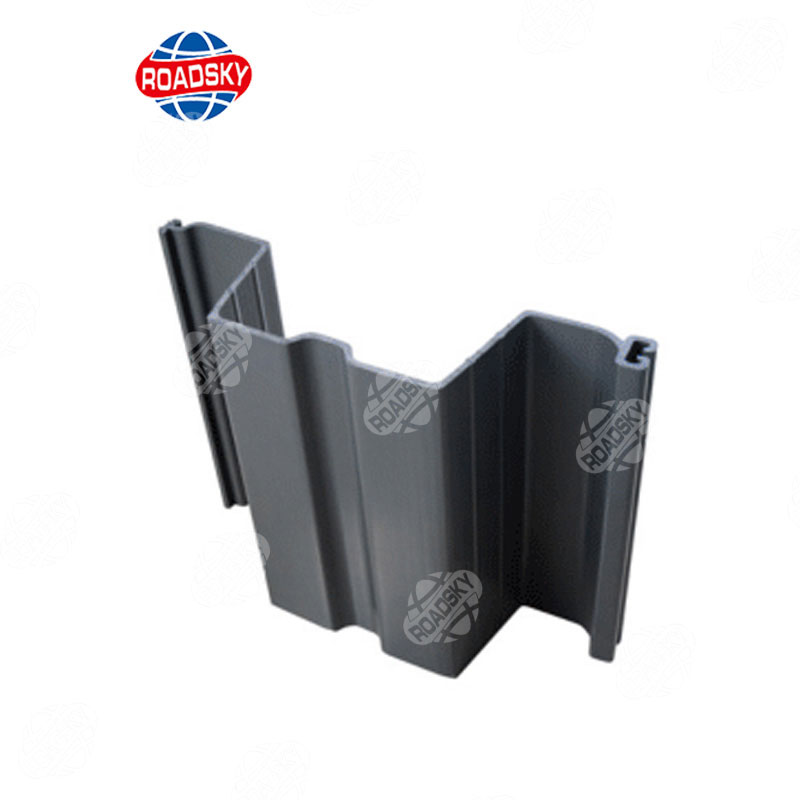

PVC Sheet Pile

Features:
1. Low Cost

2. Long Service Life

3. Easy to Install

4. Customizable

Inquiry

Product Details

Vinyl (PVC) Sheet Piles are lightweight, durable materials commonly used in civil engineering and construction, particularly for marine and waterfront applications. RoadSky’s ecological composite vinyl (PVC) sheet piles are designed to provide sustainable, high-performance solutions for various water management projects.

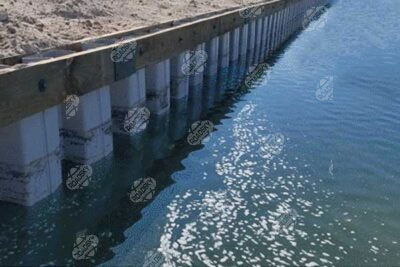

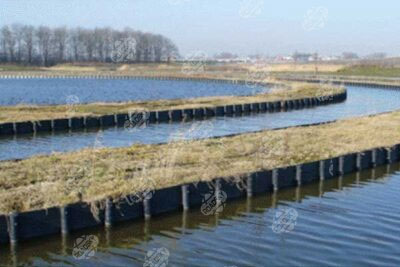

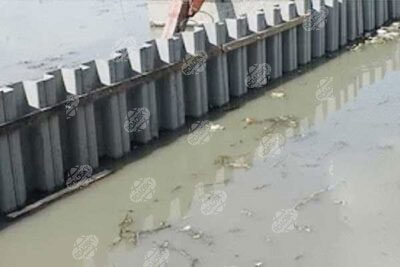

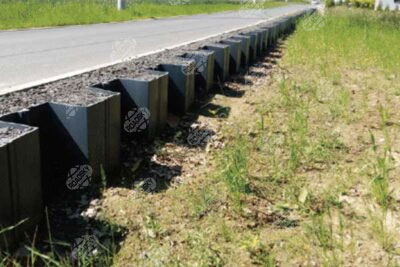

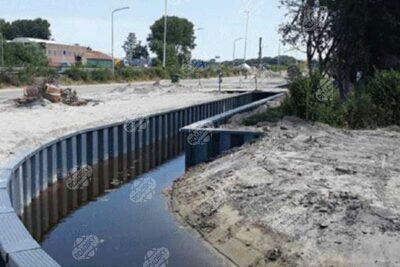

These sheet piles are widely used in the construction of revetments for water networks, including watersheds, ecological parks, and channels, as well as for seepage prevention and anti-erosion measures in dams and pump gates. They also enhance the stability of woodlands and road slopes.

RoadSky’s PVC sheet piles are known for their high tensile strength, excellent bending resistance, and overall superior physical properties. The materials have passed the SGS 225 environmental protection certification, ensuring that they meet high standards for strength, sustainability, and low carbon emissions. These features make them an ideal choice for bank protection in water conservancy projects, offering an eco-friendly, efficient solution for preventing erosion and ensuring structural stability.

Specifications:

Project	Unit	Numerical Value	Test Method
Density	g/cm3	1.42	GB/T 1033.1
Tensile Strength	Mpa	≥42	GB/T 1040.2
Bending Strength	Mpa	≥65	GB/T 9341
Notched Impact Strength of Barrel Beam	KJ/m2	≥2.2	GB/T 1043.1
Hardness	D/Shaw D	≥79	GB/T 2411

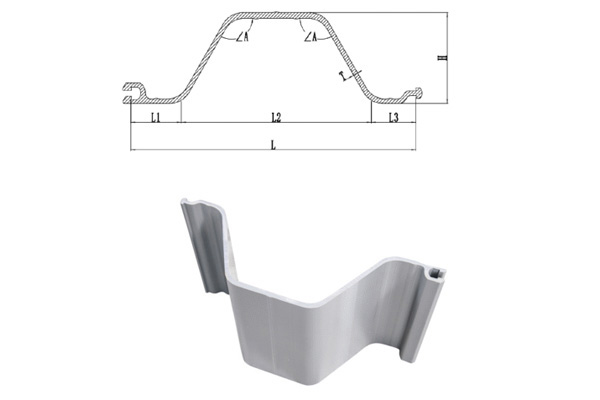

Product Model:

PU500

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PU500	500	89	333	78	153-167	120	7-9

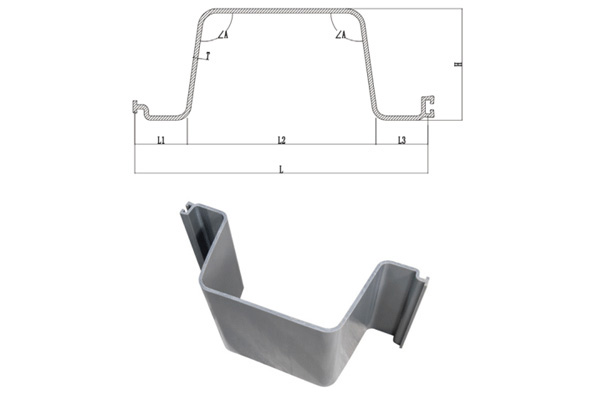

PU606

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PU606	606	108	390	108	222-236	98	8-9

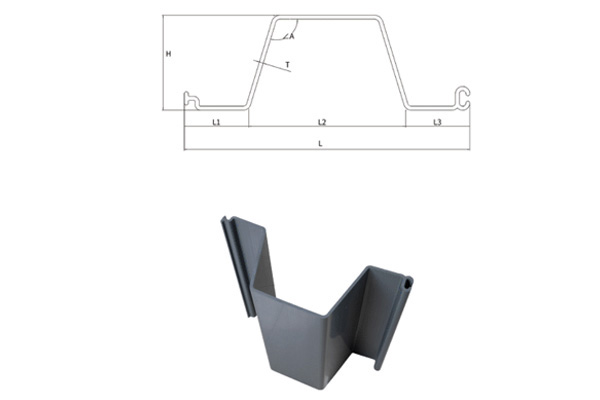

PU457

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PU457	457	100	257	100	149-155	107	6-7

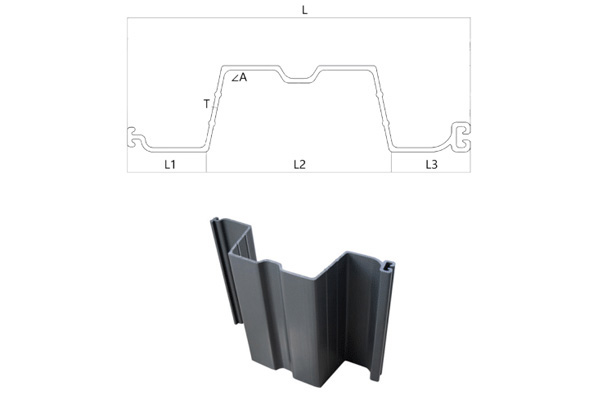

PU718

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PU718	718	165	388	165	177-183	17	8-10

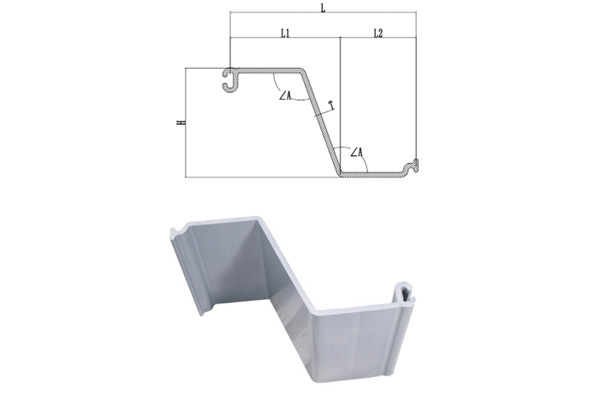

PZ457

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PZ457	434	257	177	/	244-256	110	10-11

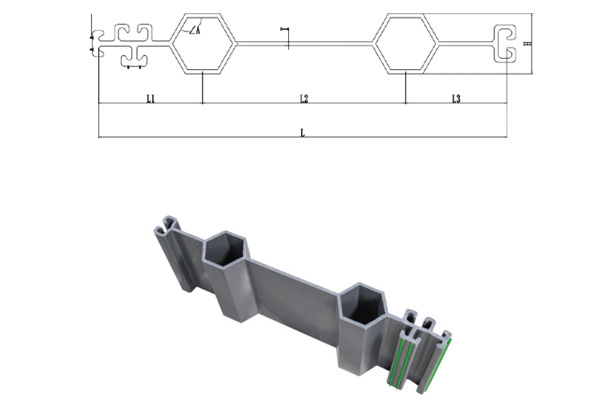

PF626

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PF626	626	159	312	155	92-104	120	6

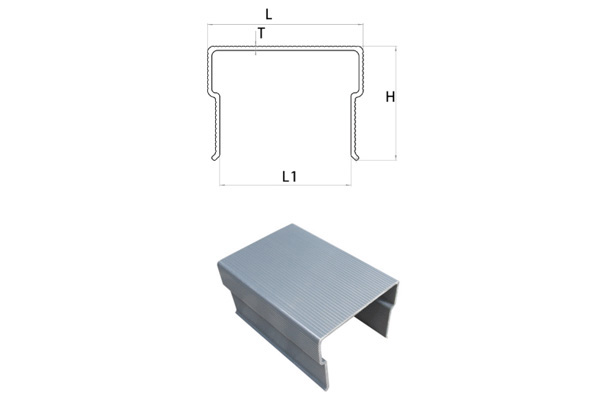

PC216

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
PC216	213-219	176-184	/	/	161	/	6

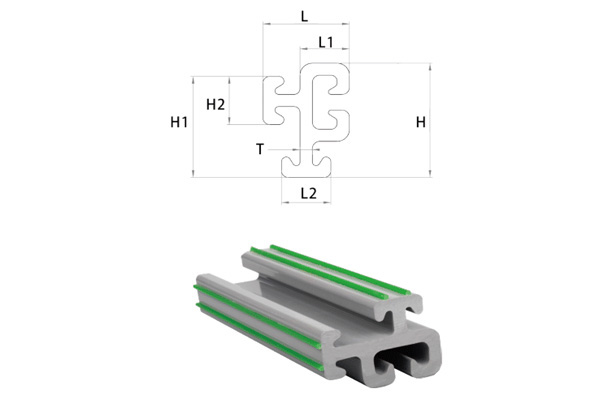

JP95

Project / Size	L/mm	L1/mm	L2/mm	L3/mm	H/mm	<A/°	T/mm
JP95	68-72	40	38.5-41.5	93-97	84	40	10

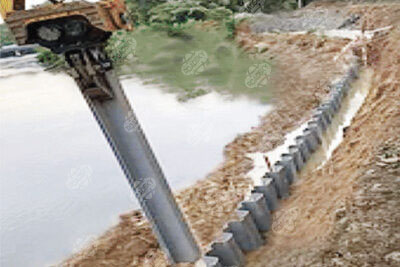

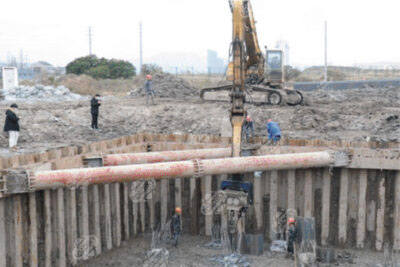

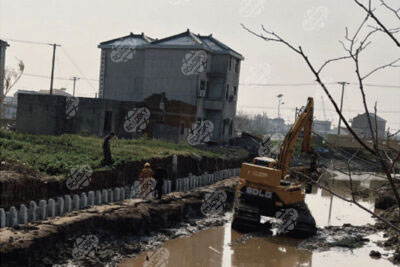

Installation Example

When installing shorter lengths, it is recommended to manually insert mallet and pile cap into the ground.
When the installation is longer or the ground conditions are more difficult, it is recommended to use the pile hammer, can directly use the standard pneumatic hammer or light vibrator.
When the installation depth is above 4M or under harsh conditions, it is recommended to use the steel sheet pile with the same shape as the ecological sheet pile for construction. The support of the steel sheet pile can penetrate the hard soil quickly and speed up the installation.

Advantages and Disadvantages of Traditional Sheet Pile

Steel Sheet Pile

The thickness of each part of the pile is the same, the section size cannot be optimized, resulting in the increase of the amount of steel, the shape of the lock position is difficult to control, the joint buckle is not strict, cannot stop water, and the pile is easy to tear during the use process.

Wooden Sheet Pile

wood is a kind of hygroscopic material, so it is easy to wet rise and dry shrinkage under natural conditions, affecting the stability of the size of wood products, resulting in deformation.

wood is anisotropic heterogeneous material, mainly shown as a variety of physical and mechanical properties of the differences. Wood cracking is easily caused by the characteristics of uneven expansion and anisotropy.

Concrete Sheet Pile

The squeezing effect of concrete sheet pile is negative in saturated clay, which will lead to quality accidents such as broken pile and neck shrinkage of cast-in-place pile. For precast concrete pile and steel pile, the pile will float up, reduce bearing capacity and increase settlement. The squeezing effect will also cause damage to surrounding buildings and municipal facilities, but it is positive in loose soil and unsaturated fill. Will play the role of encryption, improve the bearing capacity.
