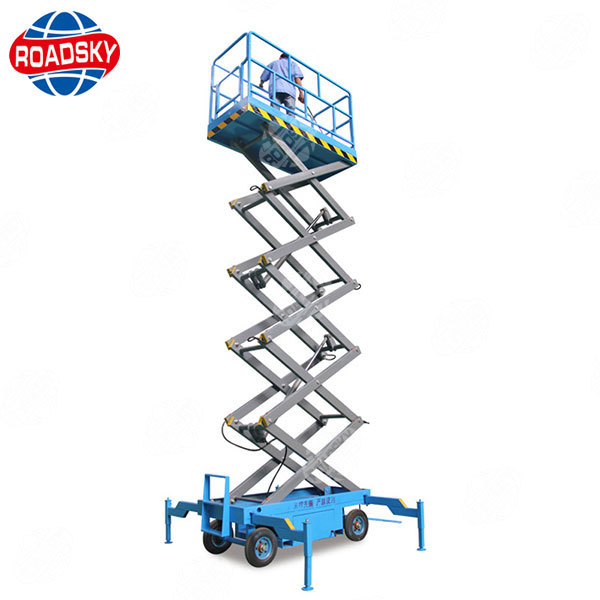

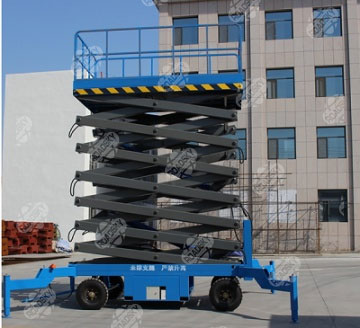

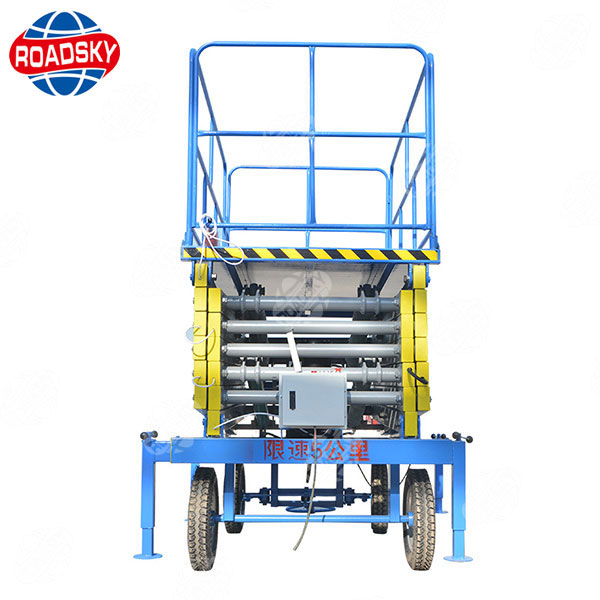

Lifting Platform for Maintenance

Key Features:

- Safe & Stable

- High Load Capacity

- Adjustable Height

- Durable Construction

- Easy Mobility

Inquiry

Product Details

Designed for efficiency and safety, our Lifting Platform for Maintenance provides easy access to high or hard-to-reach areas for maintenance and repair tasks. Perfect for warehouses, factories, and construction sites.

Specifications:

Lifting Platform for Maintenance

Model	RLP-18
Platform	3070*1600mm
Lifting Height	18m
Loading Capacity	300kg
Dimension	332118102080mm
Weight	3900kg

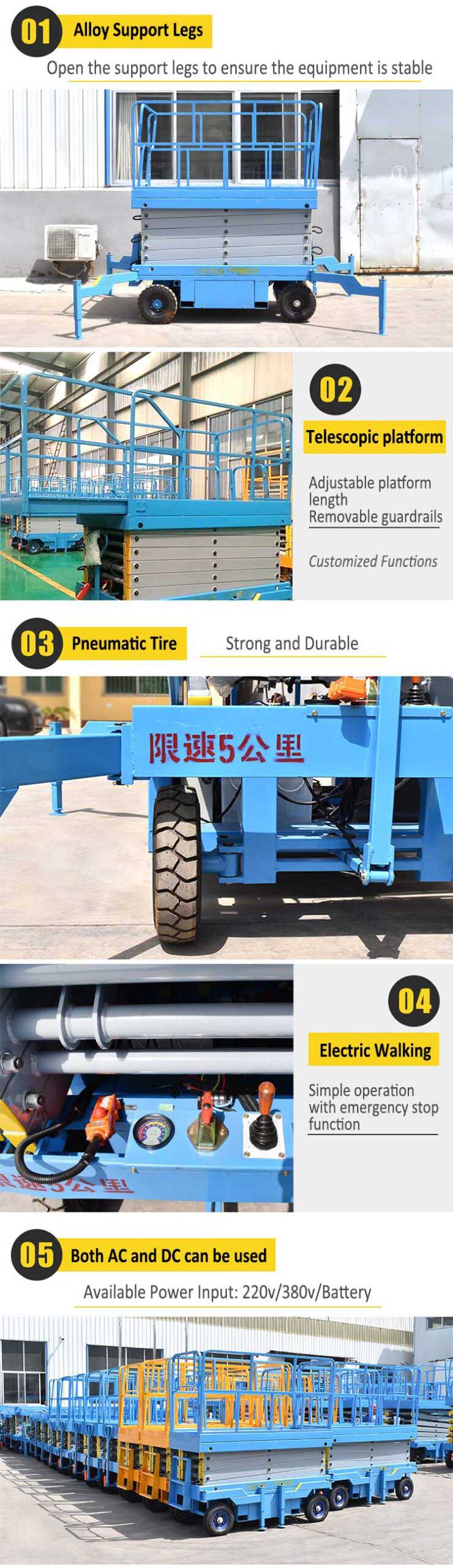

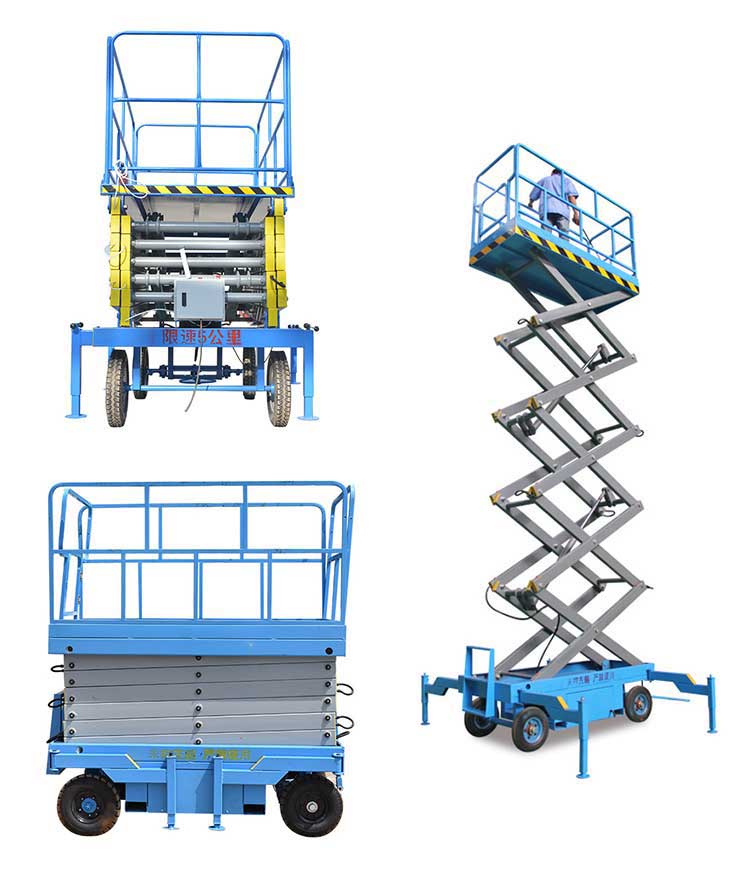

Mobile Scissor Lift Platform

An aerial work platform that uses a crossing pattern of linked, folding supports in a crisscross “X” pattern, known as a scissor mechanism, to vertically extend and lift a platform. The mobile scissor aerial work platform has the characteristics of flexible movement, stable lifting, and large load capacity. It is widely used in the installation, maintenance and cleaning of high-altitude equipment at construction sites, factories, warehouses, hotels, stadiums, stations, airports, etc.

Specifications:

Safe Working Load	320 KG
Extended Platform Safe Working Load	1480 mm
Maximum Working Height (H2)	12 m
Maximum Platform Height (H1)	10 m
Overall Length	2480 mm
Machine Width	1150 mm
Overall Height (the fence is not folded)	2470 mm
Overall Height (fence folding) (H)	1990 mm
Working Platform Size	2270×1120 mm
Platform Extension Size	900 mm
Minimum Ground Clearance (collapsed state)	100 mm
Minimum Ground Clearance (lifting state)	19 mm
Wheelbase	1870 mm
Minimum Turning Radius (inner wheel)	0 mm
Minimum Turning Radius (outer wheel)	2200 mm
Lifting Motor	24/4.5 V/Kw
Machine Running Speed (collapsed state)	3.5 Km/h
Machine Running Speed (lifting state)	0.8 Km/h
Ascending/Descending Speed	45/36 sec
Accumulator	4×6/260 V/Ah
Charger	24/25 V/A
Maximum Climbing Ability	25 %
Maximum Working Angle	1.5-3°
Tire	φ381×127 mm
Total Weight	2508 KG
