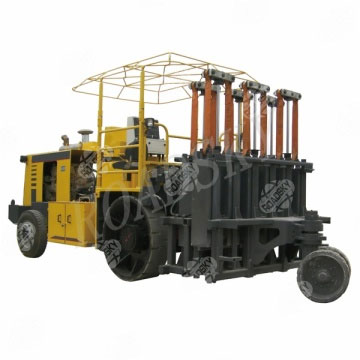

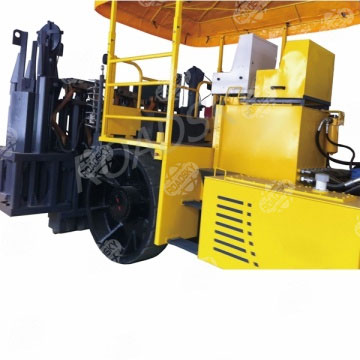

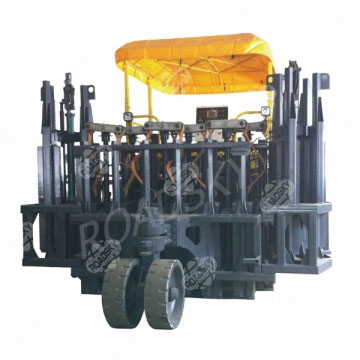

Hydraulic Multiple Hammers Concrete Road Breaker
- Product Details
Our Hydraulic Multiple Hammers Concrete Road Breaker is designed for high-efficiency concrete and asphalt demolition. Ideal for large-scale road construction, renovation, and infrastructure projects, this tool provides multiple hammer action for faster, more effective breaking of hard surfaces.
1. Functions
Fast Rubblization Process:
Rubblization can begin just hours before paving. Multiple MHB units can be used to achieve desired production rates or cover wider areas.
Specialized for Rubblization:
- The PS Series Hydraulic Multi-Head Concrete Road Breaker is designed for efficient rubblization of concrete pavements, preparing surfaces for resurfacing.
- Efficient Surface Treatment: The top layer of concrete is fragmented and flattened, while lower layers create a compacted, embedding structure, strengthening the road base for the new surface.
- Traffic-Friendly Operation: Operates close to the pavement’s centerline or edge without significantly disrupting traffic, even when lanes are diverted to shoulders during construction.
- Customizable Fracture Patterns: Adjustable operating settings allow for various fracture patterns, tailored to specific project requirements.
2. Product specifications
| Name | Unit | PS245 | PS360 | PS400 |
| Max. breaking width | mm | 2500 | 4000 | 4000 |
| Min. breaking width | mm | 800 | 800 | 800 |
| Affected depth by breaking | mm | 270 | 300 | 300 |
| Breaking frequency | Times/min. | 25-30 | 30-35 | 30-35 |
| Lifting system quantity | pc | 4 | 8 | 8 |
| Number of main hammers | pc | 8 | 12 | 12 |
| Number of side hammers | pc | ／ | 4 | 4 |
| Hammer Weight | kg | 800 | 700 | 1000 |
| Travel speed | Km/h | 0-8 | 0-8 | 0-5 |
| Working speed | Km/h | 0-2 | 0-2 | 0-1.5 |
| Max. Drop height | mm | 1500(adjustable) | 1500 (adjustable) | 1500 (adjustable) |
| Wheelbase | mm | 3500 | 4000 | 4000 |
| Rated power of engine | KW | 146 | 268 | 298 |
| Rated speed of engine | r.p.m. | 2200 | 2100 | 2100 |
| Total Weight | kg | 26000 | 30000 | 32000 |
| Size (L*W*H) | mm | 8470*2710*3620 | 8470*4250*3720 | 8470*4250*3720 |
| Working efficiency | m2/h | 2000 | 4000 | 4000 |
| Broken Rate | More than 85% | More than 85% | More than 85% | |
| Fuel Tank Volume | L | 450 | 500 | 500 |

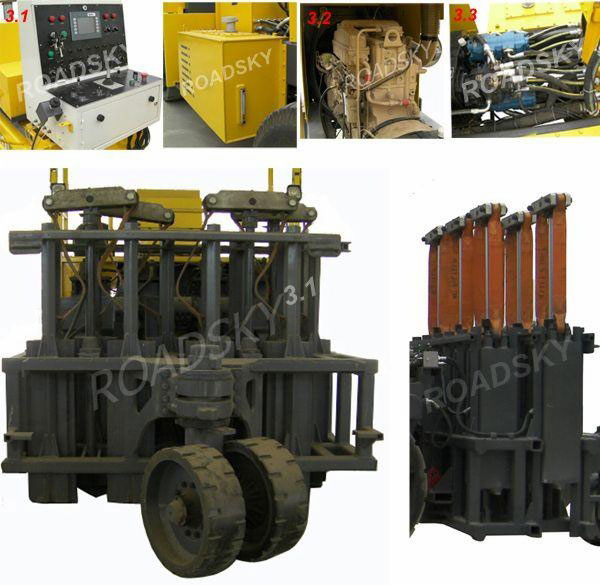

3. Details
- GPS Management System: Provides a platform for remote monitoring and service between the manufacturer and user. Includes an intelligent control system with self-diagnosis for easy malfunction detection.
- Cummins Generator (Sino-US Joint Venture): Delivers all necessary power for the system, offering advanced performance, low maintenance, and long-lasting durability.

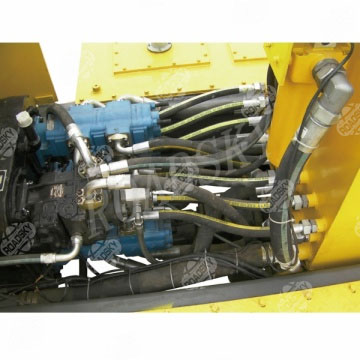

- Closed-Type Hydraulic Transmission for Movement: Features stepless speed change for smooth, stable operation and reliable performance during movement.
- Open-Type Hydraulic Transmission for Working Devices: Allows both manual and automatic control via electrical operation, providing flexibility and ease of use.

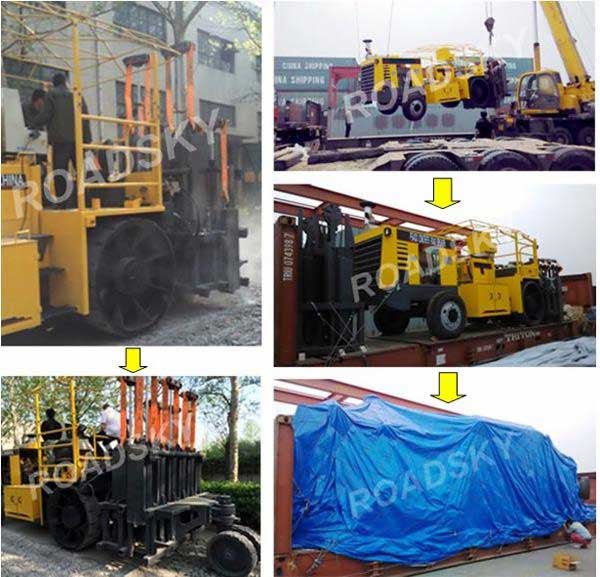

4. Working On Site & Shipping
Export and sea-worthy is standard special packing for hydraulic multi-head concrete road breaker.
