Hydraulic Hammer Compactor for Excavator – Powerful, Efficient Ground Compaction
Our Hydraulic Hammer Compactor is designed to attach seamlessly to excavators, providing high-performance compaction for a variety of construction and excavation projects. Ideal for compacting soil, aggregates, and other materials, this attachment ensures uniform ground density and optimal stability for foundations and roadbeds. Our Tamping Equipment utilizes dynamic technology to bridge the gap between traditional surface compaction and heavy ramming methods. Designed for superior filling and subgrade compaction, it excels in large-scale foundation work and specialized compaction tasks.
Specification:
| Model | HS30 | HS35 | HS50 |
| Centrifugal Force (KJ) | 36 | 42 | 60 |
| Hammer Weight (Kg) | 4500 | 4800 | 5000 |
| Operating Weight (Kg) | 8500 | 9000 | 9500 |
| Diameter of Tamping Plate (mm) | 1000 | ||
| Hammer Height (mm) | 3300 | ||
| Hammer Length (mm) | 1320 | ||
| Dimension Width (mm) | 1600 | ||
| Impacting Frequency (times/min.) | 20-40 | ||
| Hammer Stroke (mm) | 200-2000 | ||
| Max. Effective Compacting Depth (mm) | Around 3000 | ||
| Hydraulic System Flow (L/min.) | 30-80 | ||
Main Features:
1. The electron device can be used to select work pattern and tamp strength. The monitored control system can be used for operation record, which is convenient for quality control and data acquisition.
2. The tamping hammer is used to tamp by the cushion pad and tamping plate static pressure on the ground. Compared to the traditional tamping technology, it has smaller force peak, longer acting time, with the characteristics of soft effect and hard to cut the filling layer flow. It also has the functions of anti dust and anti splash.

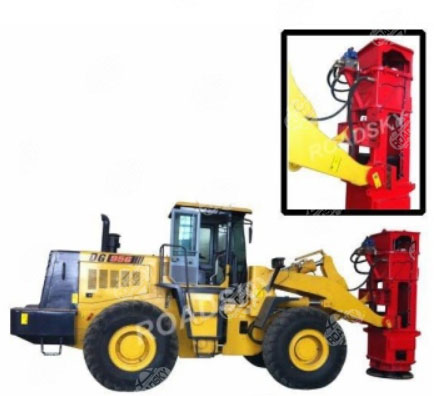

3. It is installed onto the excavator or loader, so it is convenient and rapid to accomplish transposition and transition of sites. It also can get into the narrow site.
