Flatbed Tow Truck
- Product Details
The Lift Type Tow Truck is designed for efficient vehicle recovery and towing. With a robust flat plate, hydraulic windlass, and auxiliary wheel carts, it provides versatile solutions for towing accident vehicles both on and off the road. The truck is equipped with essential safety features for nighttime operations and emergency situations. Perfect for towing, recovery, and roadside assistance tasks.
| Specifications | |||
| Name | Wrecker | Announcement | 298 |
| Total Weight | 4495 kg | Net weight | 3715 kg |
| Size | 5995×2300×2220 mm | Rated carrying | 2 people |
| ABS | available | Fuel | Diesel |
| Approach angle/ departure angle | 20/12 ° | Front/rear suspensions | 1040/1647 mm |
| Bearing quantity | 2 | Wheel base | 3300 mm |
| Tyres’quantity | 6 | Tyres’ size | 7.00-16 8PR,7.00R16 8PR |
| Front wheel tread | 1503,1485,1519,1595 mm | Rear wheel tread | 1494,1516,1540 mm |
| Max. Bearing loading | 1800/2695 kg | Max. Speed | 100 km/h |
| Chassis | |||
| Model | EQ | factory | Dongfeng |
| Tyres’ quantity | 6 | Spring quantity | 6/6+5 |
| Tyres’ size | 7.00-16 8PR,7.00R16 8PR | Turning way | Steering wheel |
| Front wheel tread | 1503,1485,1519,1595 mm | Rear wheel tread | 1494,1516,1540 mm |
| fuel | diesel | Series | 298 |
| Engine model | CY4BK551 | Displacement | 3707 ml |
| Engine factory | dongfeng | Power | 75 kw |

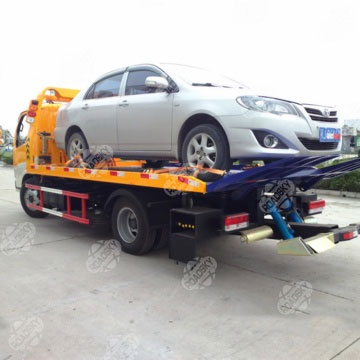

Flat Plate Dimensions: 4.2m long flat plate, with a 1m hydraulic turnover tailboard, providing a total length of 5.2m and a width of 2.3m.
High Load Capacity: Flat plate supports up to 3.5 tons, while the rear towing arm can lift and tow up to 2 tons.
Hydraulic Windlass: Equipped with a 4-ton capacity hydraulic windlass and 25m steel cable, ideal for towing vehicles onto the flat plate or recovering vehicles off-road.
Auxiliary Wheel Carts: Includes two auxiliary wheel carts for rescuing vehicles with ABS lock issues.
Comprehensive Safety Features: Fitted with alarm lights, a speaker, night lights, a washing sink, and a bandage device for enhanced safety and convenience during operations.
