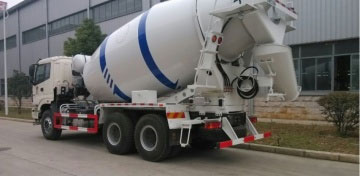

Concrete Mixer
- Product Details
A Concrete Mixer is a construction machine used for combining cement, water, aggregates, and additives to produce concrete. It ensures a uniform mixture for building foundations, pavements, and other concrete structures. Available in various sizes, it can be stationary or portable, making it ideal for both large-scale and small-scale construction projects.
| FOTON 12 m³ Mixer | |||
| 【Technical Specification】 | |||
| Product Name | Concrete mixer truck | Product Model | ROADSKY |
| Total Weight(Kg) | 25000 | Tank Volume(m3) | 12 |
| Rated capacity(Kg) | 9070 | External Dimensions(mm) | 9800×2500×3998 |
| Complete Weight(Kg) | 14500 | Container Dimension(mm) | xx |
| Rated Seating Capacity (Number) | 2 | Trailer Weight(Kg) | xx |
| Cab Seating Capacity(Number) | 2 | Max.Weight of Saddle(Kg) | xx |
| Approach angle/Departure angle(°) | 14/12 | Overhang/Rear Overhang(mm) | 1532/3318 |
| Axle load(Kg) | 7000/18000(Biaxial set) | Max.speed | 85 |
| Remarks | Mixing Capacity is 4.11m³. Choose cab with chassis. Different climbing ladder style, different rear seat style and different wheel cover style. The side protection adopts cold-formed steel/Q235 and bolt connection; the rear protection adopts cold-formed steel/Q235 and bolt connection. The height of the rear protection section is 120 mm, the width of the section is 50 mm, and the height of the lower edge is 500 mm off the ground.ABS Controller Model/Manufacturing Enterprise: 3550X-1010/Dongfeng Electronic Technology Co., Ltd.Installation of Driving Recorder with Satellite Positioning Function;The WP10.336E53 fuel consumption declaration value is 35.6L/100km.This truck is a tank-type special transport vehicle used to transport ready-mixed concrete for construction. The main special devices are mixing drum, reducer and cleaning system. The cylinder is driven by hydraulic oil pump, motor and reducer to rotate so as to ensure that the concrete carried will not solidify. | ||
| 【Chassis Specification】 | |||
| Chassis Model | BJ5253GJB-AB | Chassis Name | Concrete mixer truck Chassis |
| Brand | Auman | Manufacturer | Beijing Futian Daimler Automobile Co., Ltd. |
| Axle Number | 3 | Tyre Number | 10 |
| Wheelbase(mm) | 4100+1350 | ||
| Tyre Specification | 12.00R20 | ||
| Steel Plate Spring Number | 10/12 | Front Tread(mm) | 2005 |
| Fuel Type | Diesel Oil | Rear Tread(mm) | 1865/1865 |
| Emission Standard | Europe VI | ||
| Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
| WP10.336E53 | Weichai power company | 9726 | 247 |
| 【Chassis Configuration】 | |||
| Europe VI,Weichai 336 horsepower，Farst 9-speed gear box，4100+1350 wheelbase， 12.00R20 steel wire tyre（Auman 2490mm driver’s cab） | |||
| 【Upper Special Configuration】 | |||
| Container 12 m³, front head 8mm, Alloy Steel Wear Resistant Material Cylinder made of 6mm alloy steel resistant material, Italian PMP reducer, MP Oil Pump, Motor. Water supply device with air pressure. Slump range of concrete ：140mm-220mm | |||
