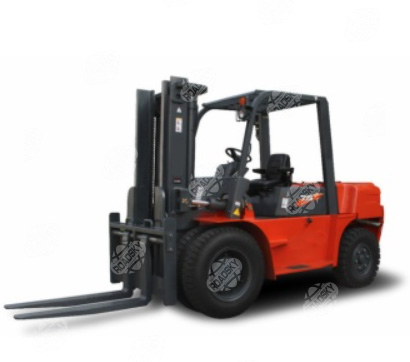

Forklift-Forklift manufacturer & supplier

Select All

Item Code: Features:

Model	Unit	RS-FD35T
Power Form		Diesel Oil
Rated Loading Capacity	kg	3500
Load Center Distance	mm	500
h 1 Max.Rising Height	mm	6000
h 3 Free Lifting Height	mm	170
Fork Cargo Size	mm	1070x120x40
Gantry Inclination	deg	Forward Inclination Angle :6°， Backward Inclination Angle:12°
L3 Front Overhang Distance	mm	498
L4 Rear Overhang Distance	mm	600
External size L1 Total Length	mm	3870
External Size W1 Total Width	mm	1225
External Size h2 Height of Gate Structure In the State of No Rise or Fall	mm	2180
External Size h4 Safety Frame Height	mm	2130
Shelf Height	mm	1280
R1 MIN. Turning Radius	mm	2490
Ra Min Right-angle Stacking Channel Width	mm	4200
Max. Driving Speed（Full/No Load）	km/h	18.5/20
Max. Lifting Speed（Full/No Load）	mm/s	400/380
Max. Grade Ability	%	20
Dead Weight	kg	4650
Front Wheel（Trye）		28x9-15-14PR
Rear Wheel（Trye）		6.5-10-10PR
S Front Wheel（Tread）	mm	1000
P Rear Wheel（Tread）	mm	980
L2 Wheelbase	mm	1700
Min.Ground Clearance M2 Gate Structure	mm	130
Min..Ground Clearance M1 Carframe	mm	160
Fuel Tank Capacity	Itr	50

We cam customize products to meet clint needs.

ROADSKY TRAFFIC SAFETY CORPORATION
